What is
Air Slide Fabric?

Air Slide Fabrics are solid woven fabrics and are used in air slides for pneumatic conveying of fine dry products like cements and other raw materials.

We provide Airslide Fabric for conveying bulk material by air gravity. The main use of Airslide Fabric is discharging, declining transportation or homogenizing the powder or small granular material . Our airslide fabric is named as Airslide fabric, Airslide membrane, Air slide cloth, Air slide canvas, Air permeable fabric, and Fluidization cloth, fluidising fabric. We adopt high quality 100% polyester for airslide fabric material.

Air Slide Fabrics are also referred to as Aeroslides, Aeration Pads, Fluxo Channels Fluid or arms, Fluidizing Fabric and Air Permeable Fabric.

  • No moisture absorption
  • No caking
  • Resistant to rotting and decomposition
  • Complete unloading without residues
  • Consistent fluidization over the complete surface
  • Good resistance to abrasion
  • Low wear and therefore longer life

Low shrinkage even when used under hot and humid conditions

air slide fabric

Types of
Air Slide Fabric

The Air Slide Fabrics are available in thickness of 4mm, 4.8mm, 5mm, 6mm and 8mm and upto a width of 1650mm. It is available in construction of Polyester Spun x Polyester Spun and Polyester Filament x Polyester Spun yarns.

Our Air Slide Fabrics are available in 2 variants and it is woven in 2ply, 3ply, 4ply & 5ply construction.
1) 100% Polyester Air Slide Fabric
2) Spun Polyester Air Slide Fabric

Available width : 6” (150mm) to 65” (1650mm)

Standard thickness : 4mm, 4.8mm, 5mm, 6mm & 8mm

Construction : Solid Woven

Yarn : Polyester Filament, Polyester Spun

Other Name : Fluidising Fabric, Aeration Pad

air slide fabric

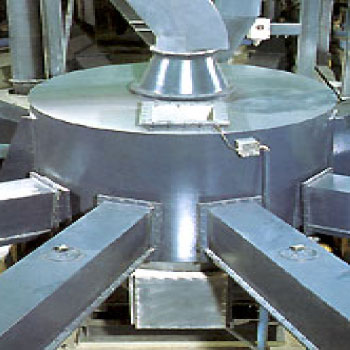

air permeability

air slide fabrics are precisely woven to provide optimal air distribution and flow rates with the minimum pressure drop.

India Canvas & Tarpaulin Co AIR SLIDE FABRIC are woven for the different Air Permeability application. We are offering Air Slide Fabric in basically in 3 varients :-

  • LOW PERMEABILITY - AIR PERMEABILITY 400M3/M2/H AT 350mmWG Tolerances +/- 15%
  • MEDIUM PERMEABILITY-- AIR PERMEABILITY 400M3/M2/H AT 800mmWG +/- 15%
  • HIGH PERMEABILITY-- AIR PERMEABILITY 400M3/M2/H AT 1200mmWG Tolerances +/- 15%

Available Thickness : 4mm,4.8mm,5mm,6mm,8mm,--Tolerances +/- 5%

Uses of
Air Slide Fabric

Depending on the customer‘s request, we can offer airslide fabrics made of different raw materials, in various grades of airpermeability and thickness, depending on the application

Power Stations : Filtered Dust, Flue Ash, Discharging Flue Ash, Coal Dust

Building and Construction : Cement, Furnace Dust, Gypsum, Limestone, Finely Ground Quartz, Calcium Hydroxide, Lead Monoxide, Quicklime, Acid Crystals, Pure Clay, Phosphates, Magnesite Concentrate, Finely Ground Fluoride, Production of Aluminum

Chemical Industry : Thomas Meal (Fertilizer), Rubber Compounds, Sinter Dust, Catalysts Sodium Sulfate, Soap Powder

Silos / Tanks : Discharging Systems, Warehouse Units, Mixing Equipment, Homogenizing Systems

Chute Bottoms : Conveyor Systems, Ventilator Systems, Aeration Systems

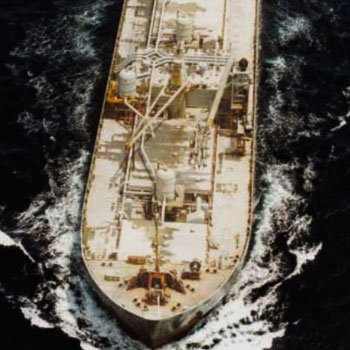

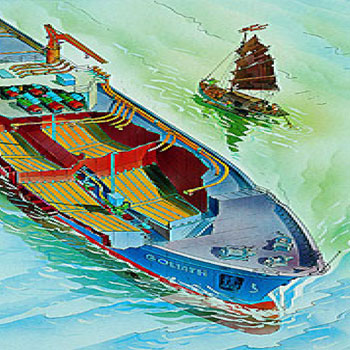

Vehicles : Silo Truck Discharging Cones, Railway Wagon Discharging Cones, Vessel Aeration & Discharging Bottoms, Container Aeration & Discharging Bottoms

Air slide fabric

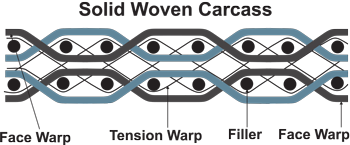

How its woven?

This air slide fabric requires a special loom, the fabric is sufficiently heavy and strong.

Air Slide fabrics are normally woven from more than one set of warps, While other binder warps are used to interlace through the fabric and thereby hold the entire construction together.

We use high Tenacity Polyester Filament Yarn and follow established process weaving to impart the following properties to Air Slides Fabric :-

  • Superior abrasion resistance
  • Resists blinding
  • Rot and mildew resistant
  • Unaffected by temperature from 30°C to 150°C
  • Thickness of 4mm to 8mm (higher thickness made to order)

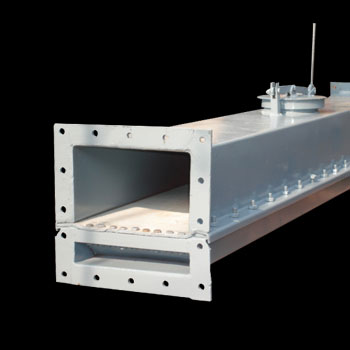

how it works?

The absence of moving parts and low power requirements make air gravity conveying the most economical way to convey fine materials over short or long distances.

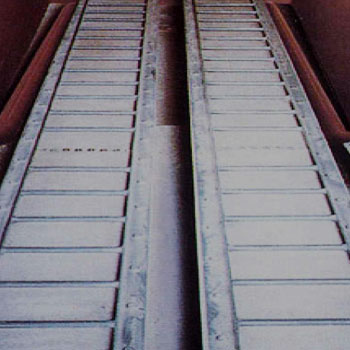

An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide fabric can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.

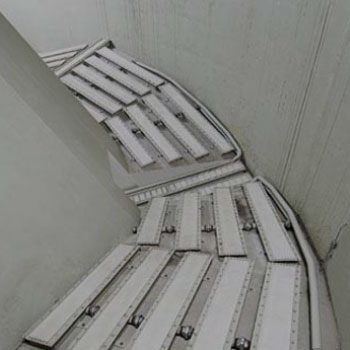

For surface aeration of the material in storage tanks of smaller dimensions, fluidization bottoms are used. These are either flat or conical with aeration air supplied below an aeration partition in the shape of a circular board or a cone.Surface aeration elements fluidize the material across its surface. The main functioning member of an aeration element is aeration fabric. Its usual thickness varies between 4 and 8 mm, specific resistance between 2,500 and 16,000 Pa at air flow 400 Nm3/m2h. Aeration fabrics are made of natural or synthetic fibers in accordance to their specific temperature resistance Air flows through the pores in the aeration fabric to the surface and enters the powder material. Hereby, its internal friction is reduced and the material is put in a fluid state thus obtaining properties resembling a liquid.

about us

India Canvas &Tarpaulin Co. was established in the year 1971 and has over 40 years of experience in the field of technical textiles.

We need no introduction in the Technical Textile world. Having a solid trained technical team with a wide range of quality Conveyor Belting Products & Technical Textiles, and On-Time Deliveries, we have been accumulating happy customers worldwide.

Our core focus and specialisation is in the Air Slide Fabrics.

Over the years, the Company has grown multifold and currently exports to several countries in Europe, Middle East, Africa and South East Asia.

India Canvas & Tarpaulin Co.

81A Chittaranjan Avenue
(New C.I.T Road), Kolkata - 700073, India
Tel : +91 33 2237- 2542 / 2236 - 4514 / 2237 - 6385
Fax : +91 33 2236 - 4514
Email : airslidefabric@gmail.com


Mohammed Sajid Hamid
Mob : +91 98310 13717


Mohammed Zubair Majid
Mob : +91 98311 15668

send us your query!

air slide fabric

Become a distributor

India Canvas is constantly seeking partners that target to provide the customers with quality, innovation and affordable products.

With our application knowledge to many industries and innovative technologies, we look forward to working with you and becoming your long term partner.

For partnering discussion please contact us.
